IBM 3270

The IBM 3270 Information Display System defined mainframe terminal interaction through its block-oriented data stream and tightly integrated family of display stations, control units, and emulation software, with documentation from the 1980s and 1990s confirming its role as a cornerstone of IBM’s enterprise data access architecture.

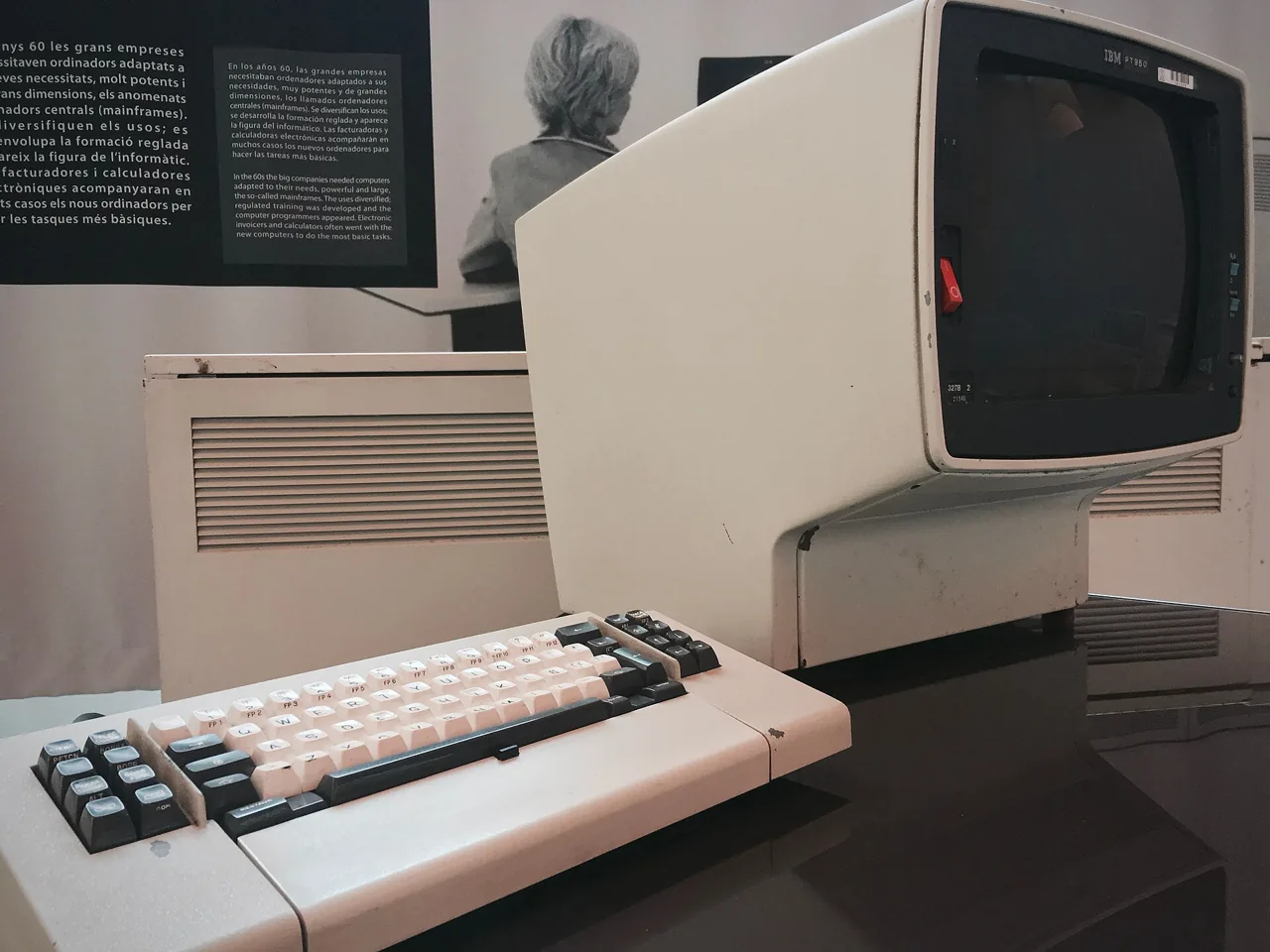

Ibm ibm-3270, archival photo
Photo: Marcin Wichary from San Francisco, Calif., CC BY 2.0, via Wikimedia Commons. source

The IBM 3270 was part of the "IBM 3270 Information Display System," a tightly integrated architecture that included display stations, control units, and supporting documentation4. This system relied on specific display stations such as the IBM 3278 Model 2 and the IBM 3279 Model 2A or S2A, both of which served as reference points for compatibility in later emulation environments67. The system’s data stream was formally documented in the IBM 3270 Information Display System Data Stream Programmer's Reference, GA23-0059, a manual essential for developers writing applications or emulators4.

Central to the 3270’s deployment were its control and connectivity components: the IBM 3274 and IBM 3174 Control Units managed terminal sessions, while the IBM 3299 Terminal Multiplexer enabled efficient cabling and signal distribution4. Installation planning was guided by the Installation Manual—Physical Planning, GA27-2787, and cabling requirements were detailed in the IBM Cabling System Planning and Installation Guide, GA27-33614. For environments requiring twisted-pair wiring, the IBM/ROLM 3270 Coax-to-Twisted-Pair Adapter, documented in GA27-3722, provided signal conversion without protocol alteration4.

As PC-based access to mainframes grew, IBM released a suite of emulation programs under the "3270 Communications Family" banner, offering tiered functionality for different user needs29. This family included the IBM PC 3270 Emulation Program Entry Level (Versions 1.1 and 1.2), the full IBM PC 3270 Emulation Program (Version 3.0), and the IBM 3270 Workstation Program (Versions 1.0 and 1.1)29. These programs supported IBM PC DOS 2.1 or 3.0 and later IBM Operating System/2 Standard and Extended Editions, running on hardware including the IBM PC, PC XT, PC AT, and select Personal System/2 models259.

Hardware-assisted emulation was available via dedicated adapters such as the IBM Personal Computer 3278/3279 Emulation Adapter and the IBM 3270 Connection adapter, the latter supporting PS/2 Models 50, 60, 70, and 80310. The IBM 3270 Personal Computer (models 2, 4, 6, 24, and 26) shipped with integrated 3270 functionality using the 3270 PC Control Program, documented in SC23-0103-212. File transfer between PC and host was handled by specialized software such as the IBM 3270-PC File Transfer Program (Release 1.1.1) for VM/CMS and MVS/TSO, and the CICS/VS variant for transaction processing environments367.

The 3270’s character set was formally defined in IBM 3270 Character Set Reference, GA27-2837, ensuring consistent text rendering across terminals and emulators4. Host compatibility spanned IBM System/370 environments running VM/SP Release 5, TSO/E Release 3, and VSE System Product 2.1 through 3.2 with Intelligent Work Station support2367. Despite its centrality in enterprise computing, surviving documentation is silent on the original terminal’s release date, pricing, physical dimensions, display resolution, and internal hardware specifications, a gap that reflects how thoroughly the 3270 was treated as a system component rather than a standalone product.

By the late 1990s, IBM continued to support 3270 integration with the 3270 Emulation PCI Adapter Users Guide, GA27-3913-00, indicating sustained relevance in legacy infrastructure long after its introduction4. The 3270 was never merely a terminal; it was a protocol, a cabling standard, a family of adapters, and a software ecosystem, bound together by documentation that treated every element as part of a single, interdependent architecture.
