Atari 600XL

The Atari 600XL, released in September 1983, was a 16K home computer with built-in BASIC and full software compatibility with earlier Atari 400/800 models, positioned as an entry-level machine in the new XL line.

Announced with the expectation of immediate availability in fall 1983, the 600XL began shipping in September of that year¹⁰. Marketed at a suggested retail price of $199 in the U.S.³⁵¹⁰, it undercut the more expensive 800XL while sharing nearly identical hardware architecture, save for its base 16K RAM, expandable to 64K via a plug-in module¹⁵. In the UK, the 16K model carried a price of £99.99⁶⁷. Despite its affordability, the expansion path drew criticism: a 48K memory module reportedly cost around $100⁵, making the total upgrade cost approach that of purchasing a fully equipped 800XL outright, a financial reality that left some owners feeling cornered¹³.

Powered by a 6502C microprocessor running at 1.79 MHz¹, the 600XL featured 24K of ROM housing both the operating system and Atari BASIC, a ROM-resident version derived from Microsoft BASIC³. This built-in language, shared only with the 800XL among XL models, eliminated the need for external BASIC cartridges required on earlier 400/800 systems². Graphically, it relied on the GTIA chip to deliver 11 graphic modes and 5 text modes, supporting a maximum resolution of 320 horizontal by 192 vertical pixels and a palette of 256 colors¹. Sound was managed by the POKEY chip, providing four independent audio channels¹.

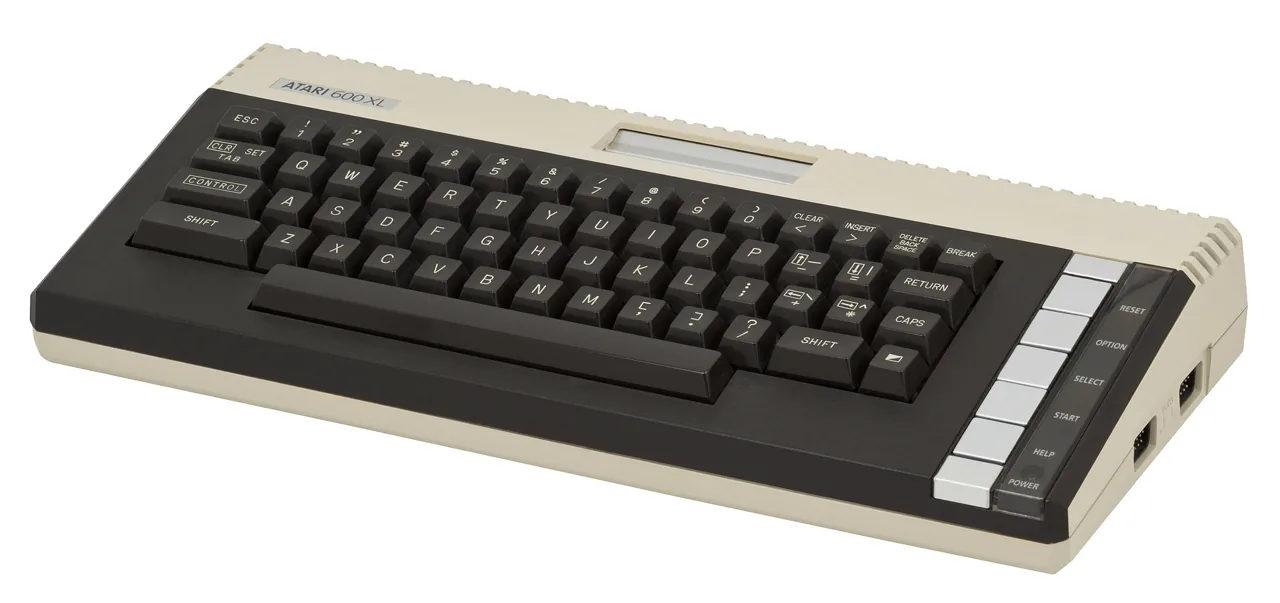

The physical design echoed the earlier 400 and 800 models but in a reduced form factor, with a full-stroke keyboard featuring 62 keys including a dedicated HELP key and four special function keys¹. The keyboard layout closely mirrored its predecessors, though with minor repositioning and the addition of the HELP key². Unlike the 400 and 800, the TV output cable was detachable, and the power supply was larger, using a distinct connector². Expansion options included a single software cartridge slot (down from two on the 800), a serial I/O connector, two controller ports (reduced from four on earlier models), and a rear-mounted full processor bus edge connector enabling memory and peripheral expansion¹⁴⁵.

Software compatibility was a cornerstone of the XL series' appeal. The 600XL maintained full backward compatibility with Atari 400/800 software, provided the program could run within 16K of RAM⁴⁹. This broad compatibility, combined with the inclusion of Atari BASIC, made it a functional entry point into the Atari ecosystem. However, peripheral integration carried hidden costs: connecting a printer or modem required a special interface module priced at $220, a steep addition that undermined the machine’s low base cost⁴.

As the first of the new XL line intended to replace the 400, 800, and 1200XL models, the 600XL represented Atari’s attempt to streamline and modernize its home computer offerings⁴. Yet its market position was awkward. While praised in the UK press as a “first class games machine”⁶⁷, its expansion economics alienated users who quickly found that upgrading to 64K (necessary for many advanced applications) was nearly as expensive as buying a pre-expanded 800XL. The machine’s lack of a monitor output, unlike the 800XL, further limited its appeal to serious users¹⁵.

References

1. Atari new product slicks 1983 (1983)
2. yourataricomputerxledition
3. Introducing IBM PCjr
4. Family Computing Issue 01 1983 Sep (1983)
5. Compute Issue 039 1983 Aug (1983)
6. AtariUser02-Jun85
7. AtariUser03-Jul85
8. The Blue Book
9. ComputerEntertainer 2-6
10. AtariUser13-May86
